Products

We manufacture the best Micro Processor Controlled Bottom Sealing & Cutting Machine in the market. Using premium grade components, our machine offers smooth performance consistently. Above all, we provide Machine at cost effective price.

Harish - H - Series - Models : FH 18 /FH 24/FH 28

• High Speed Up to 200 Storks / Min
• Servo Motor for Indexing and Accuracy
• HMI/PLC Controller
• Photo Cell to Convert Printed Rolls
• PID Temperature Controller

Specifications

• Microprocessor controlled film feeding
• Unwinder with AC frequency motor
• Sensor controlled input of film roll, gives perfect sealing line
• Static Charge for Removal
• Suitable for HM-HDPE, LLDPE, LDPE, PP films
• Preset counter for number of bags with buzzer alarm and totalizer
• Steel table with magnetic stands to stack bags

Technical Specifications

Max. Web Width	500mm
Max. Draw Length	600mm
Minimum Draw Length	75mm
Maximum Speed (approx)	200 Strokes / min.
Total Connected Load	4 KW
Dimensions (LxWxH)	3000x1200x1600mm
Weight (Kgs Approx)	800 kg

Specifications

• Powder Coated Machine With Solid Structure
• Machine Operated by Imported Servo & PLC
• High Speed and Hi Accuracy
• Hot Knife Cutting between two sealing
• Single Track and two track available
• Hot Pin available for bunching
• Photo cell for printed Jobs
• 1.5 kw SERVO Motor for indexing
• Micro Processor Controller
• High speed up to 200 strokes/min
• PID Temperature controller

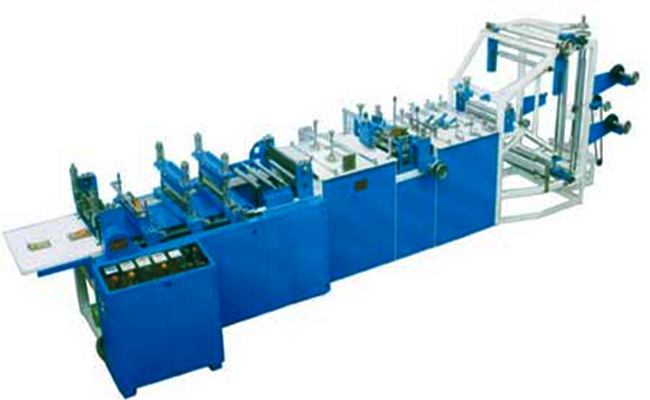

Specifications

• Bottom and Center Sealed Pouch
• 3-Side Sealed Pouch
• Photo cell for printed Jobs
• Digital counter along with batch preset
• Firm state AC control system
• Alarm & totalizer
• Shear cut by scissors action
• Universal Rotatory Type anti-friction Gusseting system
• Automatic pouch length adjustment with indicator
• Complete machine with Folding & Top- Bottom Unwinder, Tube Forming Section, Center Sealing and 3 Side
• Sealing, Gusseting Bottom Sealing, Cutting and Collecting Table

Technical Specifications

Max. Web Width	700mm
Max. Web Dia	500mm
Width of Pouch	50-350mm
Length of Pouch	50-400mm
Center Seal Width	4-100mm
Side Seal Width	5-20mm
Speed (approx)	80 pouch (min.)
Max. Connecting Load	6KW
Speed (approx)	3 KW
Size of Machine (LxWxH)	5700x1600x1800mm
Net Weight	2000kgs Approx

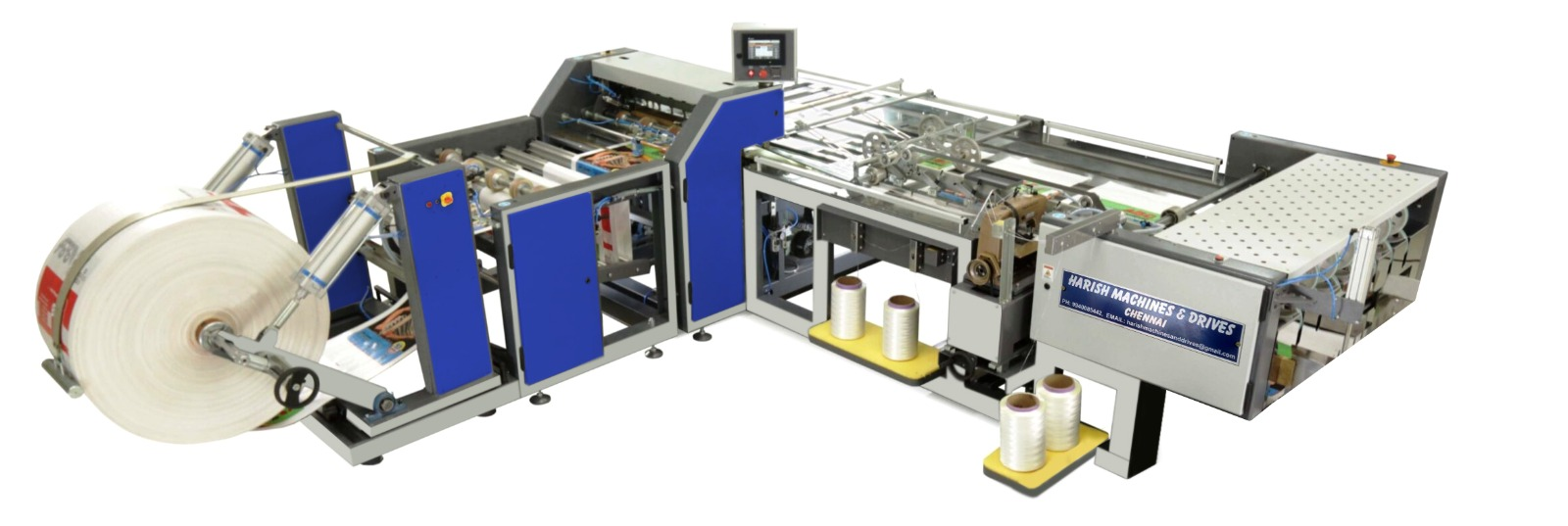

Harish Machines & Drives bcs series is a high speed conversion line for cross cutting, bottom folding, sewing and finally stacking of finished HDPE/PP woven fabric bags in one continuous operation. This machine can be used for bag conversion from plain woven. Special attachments for producing gusseted bags, perforated bags and bags with easy open top stitch are also available.

Specifications

• High working speed
• Operator friendly design
• Low energy consumption
• Low maintenance cost

Technical Specifications

Max. Web Width	700mm
Max. Web Dia	500mm
Width of Pouch	50-350mm
Length of Pouch	50-400mm
Center Seal Width	4-100mm
Side Seal Width	5-20mm
Speed (approx)	80 pouch (min.)
Max. Connecting Load	6KW
Speed (approx)	3 KW
Size of Machine (LxWxH)	5700x1600x1800mm
Net Weight	2000kgs Approx

We are doing retro fitting solution for old bag making & blow moulding machines

Controllers for Palstic Moulding Machine - SMold Series

• Controller For Injection Moulding Machine-INJkon & INJkonRainbow II
• Controller for Blow Moulding Machine-BLOkon
• Controller for Pet Stretch Blow Moulding Machine-PETkon
• Controller for Hopper Loader-HOPkon
• DOZkon - Controller for Dozing Application

Controllers for Stepper Motor - SDRV Series

• A/C Servo / DC Stepper Drive

Controllers for Motion Control Applications - SMotion Series

• Controller for Bag Making Machine-BAGkon
• Controller for Labeling Machine-LABkon
• Controller for Grinding Machine-GRINDkon
• Controller for Punch Press Machine-PUNCHkon
• Controller for Press Break and Shrearing Machine-PRESkon

Temperature Controllers - SCTC Series

• Six Channel Temperature Controller-SCTC6
• Single Channel Temperature Controller-SCTC1
• Time/Temperature Based Profile Generator-PROkon

Controllers for Textile Machineries - STex Series

• Controller for Jet Dyeing Machine-JDYEkon

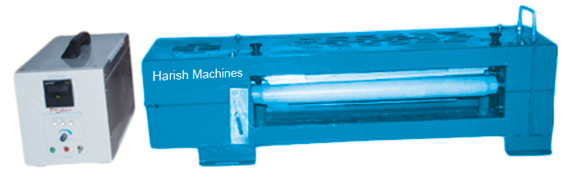

Specifications

• Main supply: 220 VAC Single phase 3 wire + 5%
• Mains frequency: 50Hz +5%
• Power dissipation: 1.0 Kw to 20.0 Kw.
• Output frequency: 18khz to 60khz
• High frequency generator: By using latest German technology IGBT & IGBT driver.
• Indication: Audio alert at the time of start Digital Load Ampere meter, main on corona start, audio & visual alarm at the time tripping control
• Power control by potentiometer corona start / stop
• Pneumatic on/off
• Maximum power lock adjustment protection
• Rotation control via inductive sensor.
• Corona cannot be start when the door is open.
• Over load protection and dynamic short circuit protection at IGBT input shutdown.
• Under voltage/ Over voltage shut down input.
• Hazardous area: No
• Integrated potential free power supply for IGBT driving. Drive inter lock top /bottom

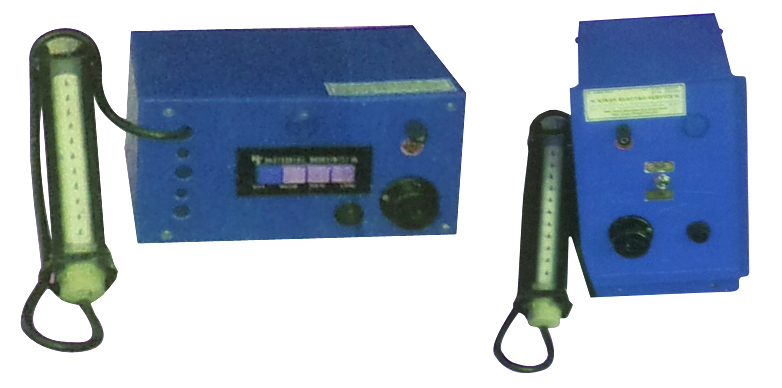

Different problems caused by static electricity are:

Specifications

• Leads to improper stacking. Cause problems in printing
• Sheet feeding problems. Materials tearing, jamming or curling
• Hazardous sparks or shocks to person. Static cling causes handling problem

Use of our superior quality static eliminator ensures solution of all these problems and results in trouble free operation, increased profits and maximum customer satisfaction
